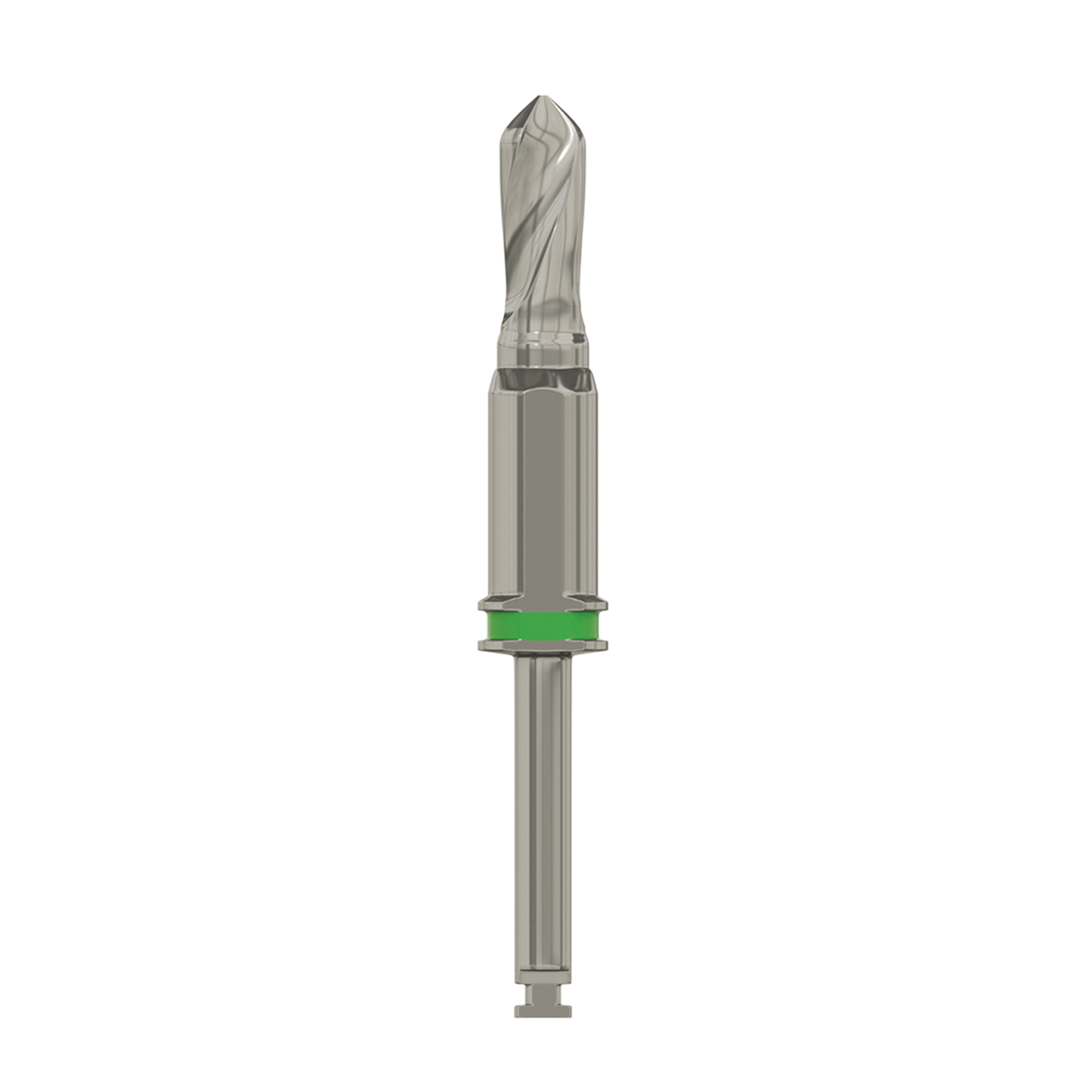

Drills For Surgical Guide With Sleeve

DSI Guided Drills are designed as drills with stoppers for safe and secure drilling sequences. These drills are intended for use with a special surgical sleeve guide. The sleeves can be used for manufacturing any custom surgical guide. they are multi-usable and could be withdrawn from the surgical guide, sterilized, and reused in the next one.

This drilling system is ideal for use, regardless of the skill level, it is an invaluable tool for achieving precise and dependable results. The DSI Guided Drills system ensures a safe and straightforward process for the patient. This is done by gradually increasing the drill size, providing a smooth transition with each step in the sequence.

This system is specially designed to provide a secure and precise approach to traditional drilling protocols and sinus-lifting procedures. It helps to minimize any risks of over-drilling, accidental sinus membrane perforation, or damage to nerves. This system is much more precise and reliable compared to free-hand surgery and ensures that planned results are achieved more accurately.

Features:

• Made of high-quality stainless steel
• Compatible with flapless surgery
• Almost no deviations between the achieved implant position and the planned one
• Prevents over-drilling

• Compatible with most implant systems

• Minimum Drill/Bone heat generation, low vibrancy, controlled and precise work with confidence
• Autoclavable and reusable both drills and guides

Indication:

• Oral surgery

• Sinus lifting procedures

• Bone perforation

• Implant socket preparation (two-stage, or immediate loading)
• Used with a guided sleeve in a custom-made surgical guide

Benefits:

• Both drills and sleeves are multi-usable - cost-effective solution
• Ideal for both professionals and beginners - regardless of the skill level
• Ensures a safe and straightforward process for the patient
• Minimize any risks of over-drilling, accidental sinus membrane perforation, or damage to nerves
• Precise and reliable compared to free-hand surgery
• Minimal deviations between the achieved implant position and the planned one
• Abutments and provisional crowns can be pre-planned and pre-manufactured - gradually decreasing the overall treatment time

Technical Information:

• Material: Stainless Steel (both the drills and the sleeve)
• Drill Working/Cutting part Diameter: 2.0, 2.8, 3.2, 3.65mm
• Drill Working/Cutting part length: 6.0, 8.0, 10.0, 11.5, 13.0mm
• Sleeve size: Ø5.1mm Length 5.9mm
• Fully compatible with all the major implant systems - DSI®, MIS®, Alpha Bio®, AB Dental®, BioHorizons®, Zimmer®, Implant Direct®, Cortex®, Alpha Gate®, Adin®, Paltop®,Ditron Dental®, Surgikor®, JdentalCare®
• Autoclavable and reusable (both drills and sleeves)


Package includes 1 drill (size for selection) and 1 guide sleeve with each drill
