Angulated Multi Unit Full Set

$97.90 USD
Shipping calculated at checkout.
FREE SHIPPING
Spend to FREE SHIPPING

Main Features

Collar 2-5mm and Angle 17, 30, 45, 52, 60 Selection

Multiple teeth, Complete bridges, Long-term/permanent restorations All-on-4,All-on-6, Non-parallel implant alignment cases

IFU

  • Sku: PMUA-NO-1720
  • Type: Premium(M1.4) - Internal Hex Ø2.42mm
Angle
Collar Height
Catalog

Full description

The DSI Angulated Premium Multi-Unit Abutments 1.4M come with an angle selection of up to 60° which allows overcoming implant divergence for up to 120° in all directions for perfect parallel alignment. They are suitable for all kind of restorations from a single tooth to full jaw as in treatments like the All-on-4 or All-On-6, as they provide edentulous and partially edentulous patients with a full-arch prosthesis.

  • Higher angulations (45°+) are developed for basal and zygomatic bone-anchored implant restorations


DSI Premium multi-unit unique design provides the most advantageous soft tissue contouring. The low-profile abutment can be inserted into a shallow or deep tissue with no need for readjusting. DSI Premium multi-unit system made with the highest degree of accuracy. All the parts fit each other with exceptional veracity, thanks to the thorough examination of every component by a leading team of qualified professionals‍

DSI Premium multi-unit abutments could be inserted directly into the implant for any screw-retained restoration. A broad spectrum of screw-retained supra structures is available for this multi-unit system presenting additional possibilities for each patient's specific individual case.

The most commonly used and versatile is the Full Set, which includes

One abutment of the chosen size:

  1. MUA-NO-1720, MUA-NO-1730 , MUA-NP-1740 , MUA-NO-1750 , MUA-NO-3020, MUA-NO-3030, MUA-NO-3040, MUA-NO-3050, MUA-NO-4520, MUA-NO-4530, MUA-NO-4540,MUA-NO-5220, MUA-NO-6020: Angulated Multi Unit Abutment Ø5.0mm ,2.0-5.0mm x1

And the following parts:

  1. MU-NO-OT: Open Tray Transfer + screw Ø 4.9mm , L=9.0mm, H=11.0mm x 1
  2. MU-ANNO: Titanium Analog Ø 4.9mm , L=11.0mm, H=18.0mm x 1
  3. MU-NO-HC: Healing Cap Ø 4.9mm , L=3.7mm, H=4.7mm x 1
  4. MU-S-ST14: Titanium Sleeve Abutment Ø 4.9mm , L=11.0mm, H=12.0mm x 1
  5. MU-S-SP14: Castable Sleeve Abutment(for Lab) Ø 4.9mm , L=11.0mm, H=12.0mm x 1
  6. MU-NO-CT: Snap On Cap for closed transfer Ø 4.8mm , L=6.8mm, H=11.0mm x 1
  7. MU-NM-CT: Closed Tray Transfer Ø 4.8mm , L=5.0mm, H=8.0mm x 1

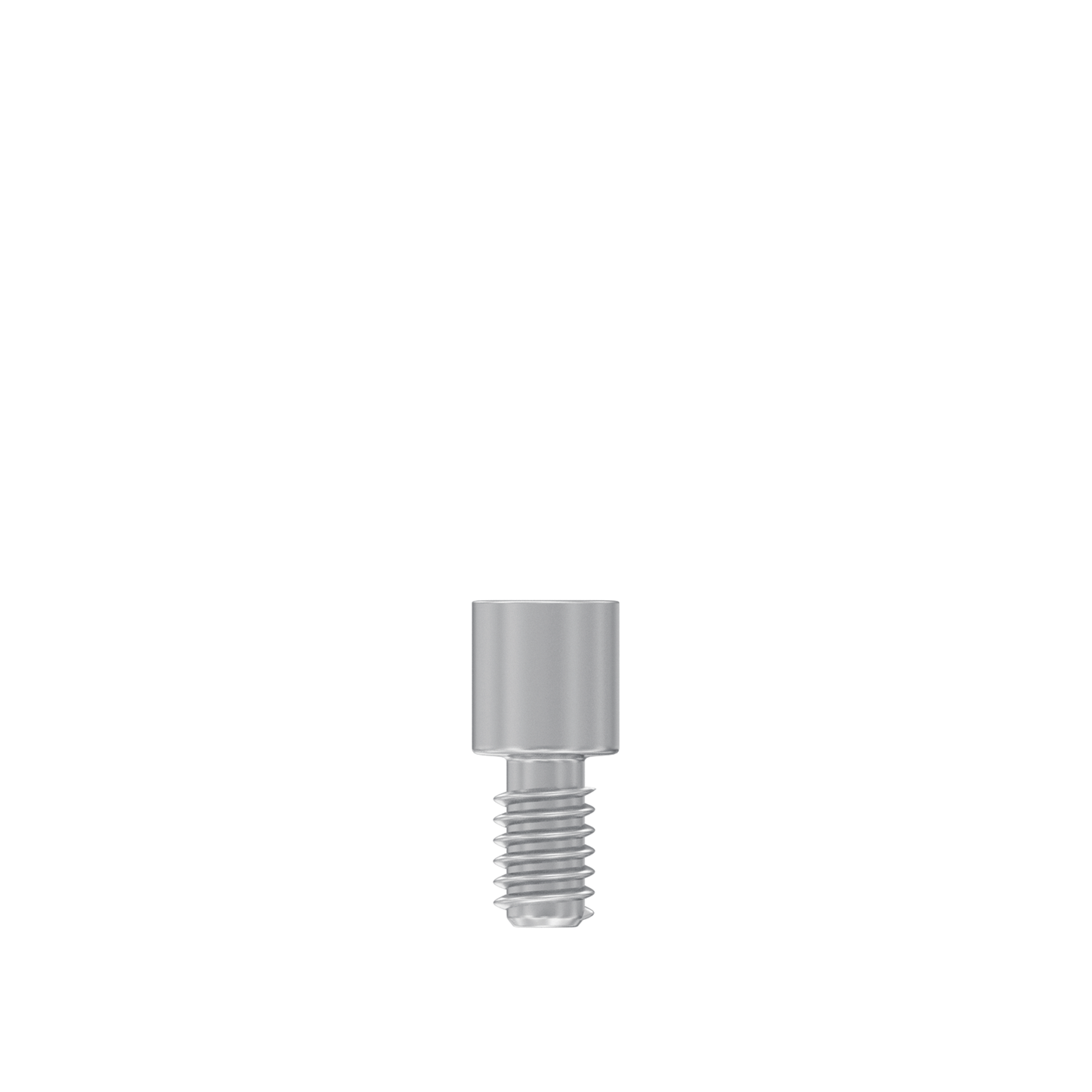

  8. MU-TX-FX: Fixation Short Screws Ø 2.0mm , L=2.2mm, H=4.2mm x 2
  9. MUIH: Metal Position Holder Ø 1.4mm , L=7.5mm, H=15.3mm x 1

Best-in-class digital library link for free download
Exocad: https://dsisrael.co/EXOCADLIB
3Shape: https://dsisrael.co/3SHAPELIB



Indications:

  • Multiple teeth
  • Complete bridges
  • Fabrication of long-term/permanent restorations
  • All-on-4,All-on-6
  • For non-parallel implant alignment cases

Features:

  • Excellent biocompatibility, no risk of abruption.
  • Precise, non-rotational, functional.
  • Simple, fast, and accurate positioning.
  • Outstanding stability for the crowns and bridges
  • Superior aesthetic results.

Technical information:

  • Made of Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
  • Regular platform - Ø4.9mm / collar height 2.0-5.0mm
  • Implant Level Connection 2.42mm Internal Hex, compatible with: DSI®, MIS®, Alpha Bio®, AB Dental®, BioHorizons®, Zimmer®, Implant Direct®, Cortex®, Alpha Gate®, Adin®, Paltop®,Ditron Dental®, Surgikor®, JdentalCare® - Internal Hex RP
  • Multi Unit level Connection M1.4 Compatible with : Nobel Biocare and DSI premium multi-unit abutments M1.4
  • 17° Degrees
  • 30° Degrees
  • 45° Degrees
  • 52° Degrees
  • 60° Degrees
  • Titanium fixation screw included with every abutment
