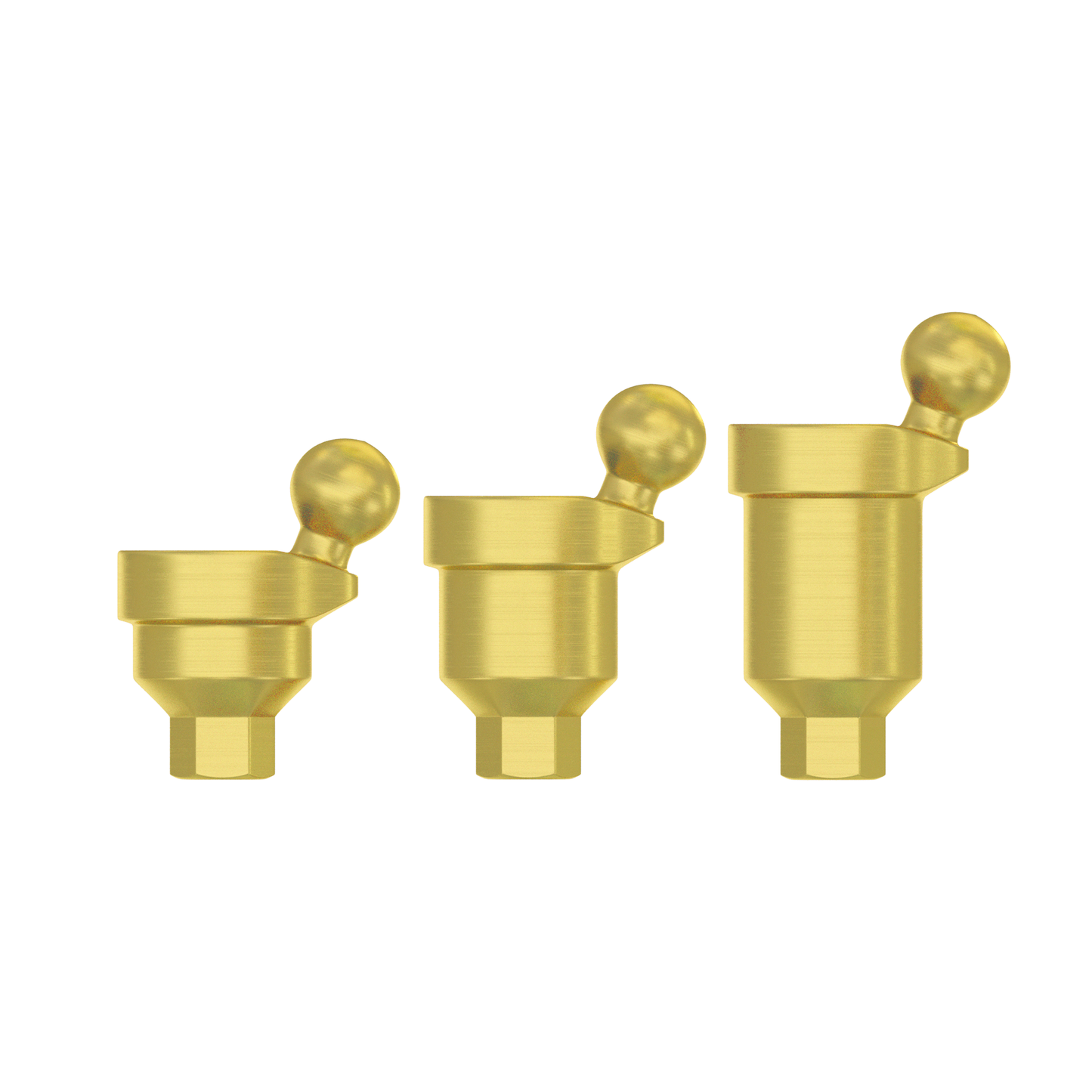

Angulated Ball Attachment Basic Set

DSI Angulated Ball attachments are a type of dental attachment that offer remarkable stability and longevity for denture restorations.

They have a unique mechanism that allows for self-positioning and stability during everyday use.

Unlike other attachments, the entire body of the ball attachment can be hidden under the gums, providing a high level of aesthetics.

The ball attachment system is easy to use and can be maintained at home by the patient, reducing the need for constant appointments with the dentist.

The most commonly used and versatile is the BASIC SET, which includes:

1. Angulated Ball Attachment Abutment 4.2mm 1.0-3.0mm x1
2. Silver Metal Housing (height 3.2mm) -Ø 4.6mm x 1
3. Clear Standard Cap normal size Ø 2.5mm 1.3kg retention x 1

Indications:

• Partial and full dentures
• All-on-4, All-on-6
• Denture conversion

• Single tooth restoration (very rare )
• For non-parallel implant alignment cases

Features:

• Internal hex connection is compatible with a major variety of implant brands.
• Available in different collar heights.
• wide range or different resilience/retention level soft silicone inserts are available for maximum patient comfort and natural chewing motion
• Full solid titanium body.
• Hygiene-friendly construction.
• Excellent biocompatibility.
• Perfect choice for overdentures
• Designed for easy placement.
• Long term survival of silicone inserts thank to a steady placement.
• Guarantees a secure fit between with the implant.
• Stable and durable for a long time

Technical information:

• Made of Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
• Standard platform - Ø4.2mm / height 1.0-3.0mm
• Connection 2.42mm Internal Hex, compatible with: DSI®, MIS®, Alpha Bio®, AB Dental®, BioHorizons®, Zimmer®, Implant Direct®, Cortex®, Alpha Gate®, Adin®, Paltop®,Ditron Dental®, Surgikor®, JdentalCare® - Internal Hex RP
• 18° Degrees
• 30° Degrees
• 40° Degrees
• Titanium fixation screw included with every abutment
