DS-RKS Kit

DSI Implant & Screw Removal Kit is made for the precise extraction of broken, poorly fitted, or misplaced implants, along with the removal of fractured fixation screws. Offering a non-invasive alternative to surgical intervention, this procedure is swift, dependable, and minimally traumatic for patients. Upon extraction of the broken screw, it can be replaced replacement with a new prosthetic solution.

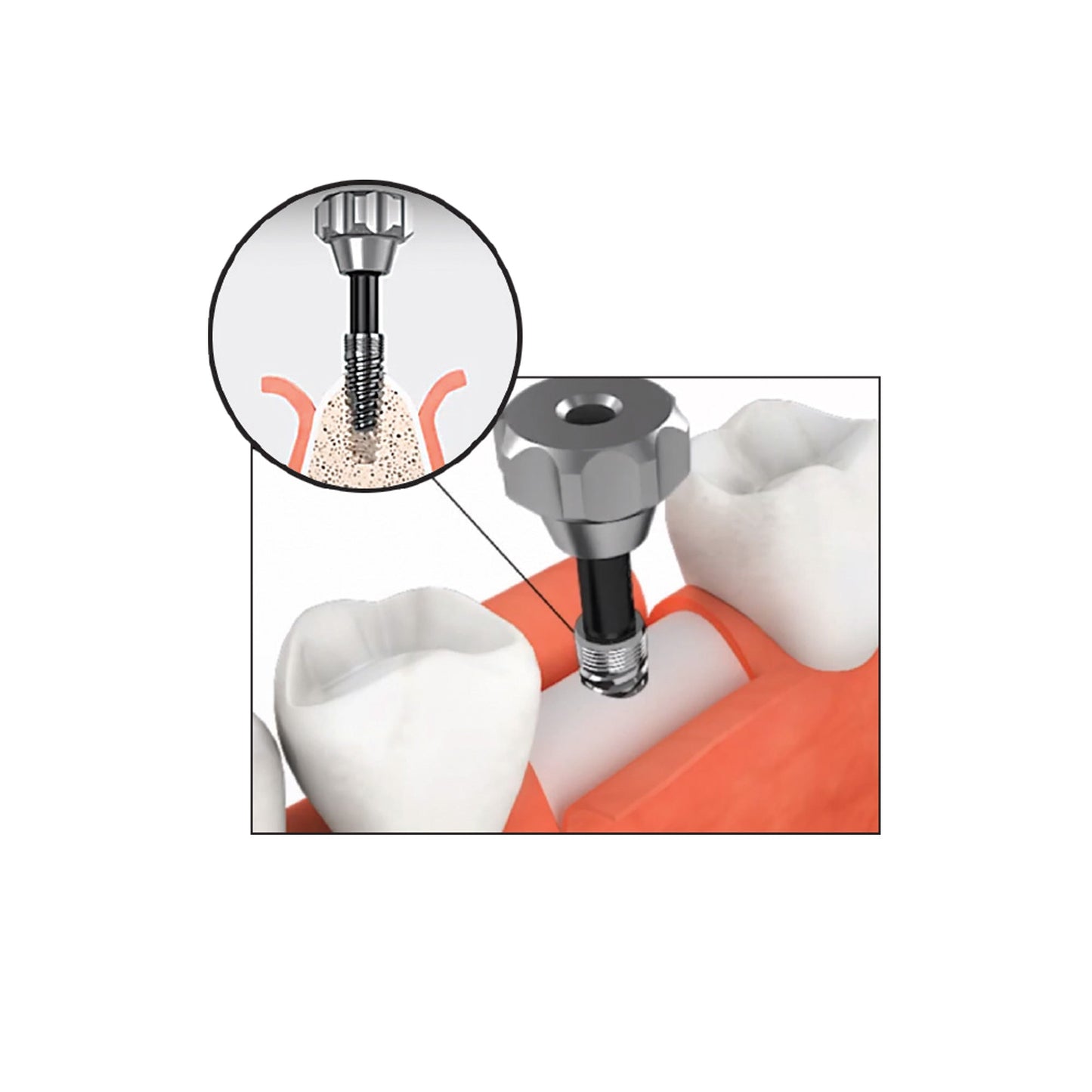

The kit contains extraction drills that fit a wide array of platforms and implant sizes found in the dental market. It also features reverse and tap drills made for the extraction of broken or fractured screws from implants. The removal drill tools' tapered bodies seamlessly engage with the internal threads of both the implant and screw, facilitating effortless and rapid extraction, including implants already integrated into bone structures.

The Implant removal drills are compatible with the kit's designated ratchet or hand adapter. The screw removal drills are designed with a universal latch-type RA connection.

Moreover, the kit includes guides for nearly all platforms, serving as invaluable aids in advanced techniques for scenarios where standard methods prove inappropriate. These guides facilitate precise positioning and stabilization of the reverse drill during the procedure, ensuring great accuracy.

Indications:

• Removal of failed, misplaced, or broken implants.
• Removal of broken and fractured screws
• Drilling out broken screws that cannot be extracted with a regular removal drill
• Forward engagement with the implant inner thread without surgical intervention.

Features & Benefits:

• Easy and fast removal on any implant, including the ones that are already osseointegrated into a bone structure
• Simple removal of all kinds of fixation screws, broken and fractured alike
• No bone damage or serious trauma for patients
• No need for surgical intervention, trephine drills, or additional units
• When the broken screw is lifted from the implant it can then be replaced by a new prosthetic solution with a new fixation screw
• Applicable for a large variety of implant types, and diameters
• Removes failed implants without compromising surrounding bone or damaging neighboring structures
• Fast, reliable, and cost-effective solution
• Can be used with a ratchet, hand adapter, or with a contra-angle handpiece

Technical information For Implant removal drills:

• Material: Carbide
• External device connection type: Ratchet square Ø4.0mm
• Additional adapters: Manual adapter
• Autoclavable and reusable


Compatibility:

• HFR16 (16°): Used for conical implants

• HFR16N(16°N): Used for narrow implants

• HFR22(22°H): Used for spiral implants

Technical information For screw removal drills:

• Material: Carbide
• Diameter: Ø1.0mm
• Length: 25mm / 32mm
• Speed: 30-80RPM (Screw remove tap) / 800-1000RPM (Screw remove drill)
• Compatibility: Internal-Hex abutment screws with a Ø1.25mm inner hexagon
• External device connection type: Latch-type RA
• Can be used with a contra-angle handpiece
• Autoclavable and reusable

The kit includes all the following items:

• HSD1032: Screw remove drill Ø1.0mm, L 32mm (1pcs)

• HST1025: Screw remove tap Ø1.0mm, L25mm (1pcs)

• HSB145B: Screw remove bar Ø1.0mm, L60mm (1pcs)

• HSG22N: Screw remove guide - sub-non-hex 22N (1pcs)

• HSG16N: Screw remove guide sub-non-hex 16N (1pcs)

• HSG25H: Screw remove guide sub. hex 2.5 (1pcs)

• HSG22N: Screw removes guide sub. hex 2.1 (1pcs)

• HFR22: Spiral implant remove F22° (1pcs)

• HFR16: Conical implant remove 16° (1pcs)

• HFR16N: Narrow implant remove 16°N (1pcs)

• HSD054L: Implant cover screw remove (1pcs)

• HRW9758: Ratchet wrench square head Ø4.0mm (1pcs)

• HHSA40: Manual adapter (1pcs)
